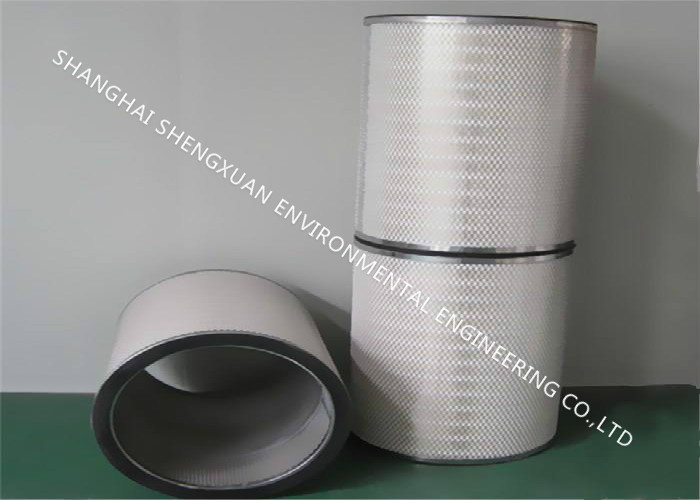

Self-cleaning air filter pleated cartridge which used in industrial filtration
Air filter cartridge design and selection
Most dust collectors manufacturers and end users are choosing air filter pleated cartridge for high filtration efficiency, reasonable size and cost of equipments in te field of industrial dust.Design and selection of air filter pleated cartridge consider the following factors:
The nature of dust
Installation type
Filter media selection
Application:
Suitable for air separation oxygen
plant,large compressor inlet air filter,
and the blast furnace blower.
lmported special composite filter paper for air filter/dust removal,ensure filtration effect;
Wide fold design,big filtering area;
Electric galvanized plate,will not rust;
Electric zinc galvanized end cover,no rust;
Electric zinc galvanized lozenge shape center skeleton with high opening rate;
Elastic neoprene used for the seal hole;
Relative humidity 99%.
Working temperature less than 100 degree.
Note :
Initial resistance pressure means the clean air testing resistance, excluding the equipment body resistance.
Orders with specified sizes acceptable.
| Model | Specification | Air flow | Initial resistance pressure | Working Temp. | Filtration area | Filtration efficiency |
| 3266 | DN 324X660 | 800m3/h | 80-100Pa | 65 degree | 21m2 | 99.99% |
| 3270 | DN 324X700 | 900m3/h | 80-100Pa | 65 degree | 23m2 | 99.99% |
| 3275 | DN 324X750 | 1000m3/h | 80-100Pa | 65 degree | 25m2 | 99.99% |
Package detail and Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Loading Port :
By sea / air / express
Shanghai / Ning Bo/Tianjin
